The AY-201 is a high-definition wireless endoscope designed for dental diagnostics. It allows users to see a live, magnified video feed of the inside of the mouth on a smartphone or tablet. It is marketed for both professional dental use (patient education) and personal home health monitoring.

• Feature	Specification
  Model	AY-201 / AY-IOC001
  Resolution	1920 x 1080P (Full HD)
  Focal Distance	10mm – 20mm (Fixed Macro Focus)
  View Angle	70° – 80°
  Light Source	8 Adjustable White LEDs
  Battery Capacity	1000mAh (approx. 120 mins use)
  Charging Port	USB Type-C or Micro-USB (depending on version)
  Supported Systems	iOS 8.0+, Android 4.4+, Windows, MacOS

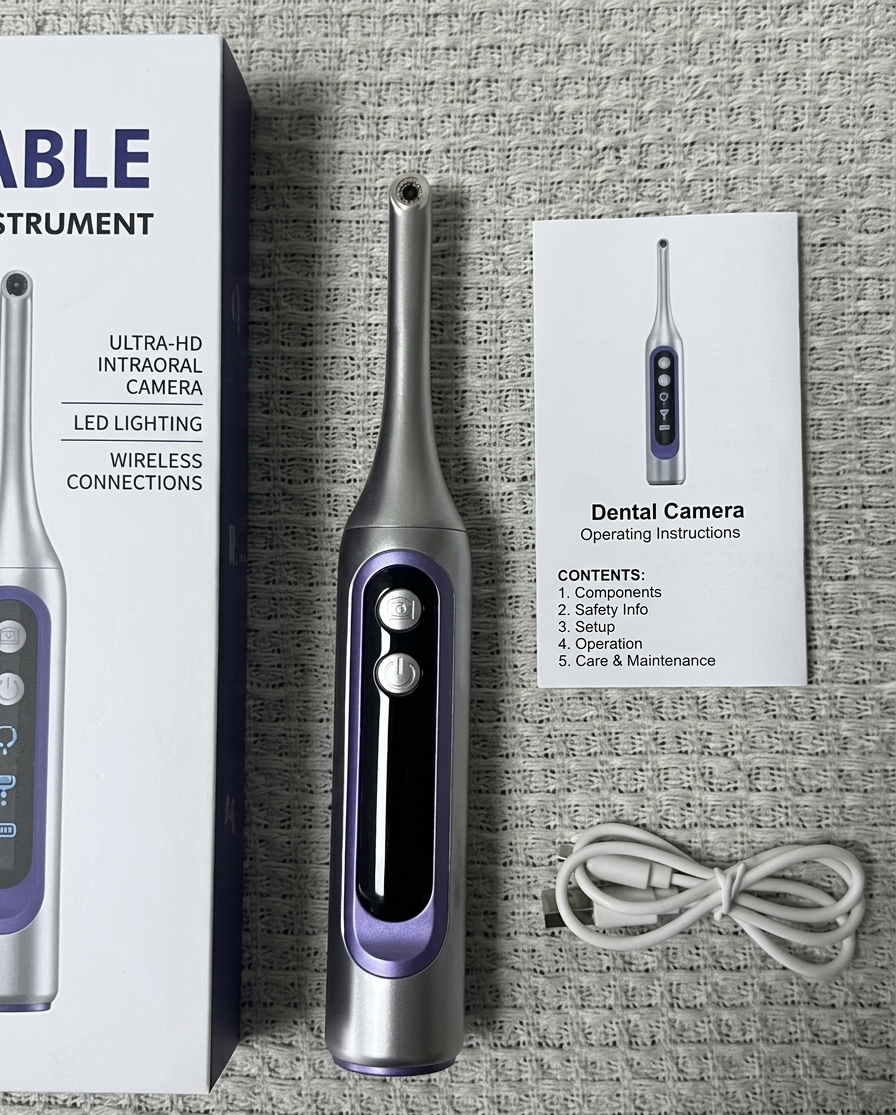

Based on your images, the standard retail package includes:

1. The AY-201 Handpiece

2. USB Charging Cable

3. Operating Instructions / User Manual

4. Protective Sleeves (often included to maintain hygiene)

Setup & App Connection

1. Download the App: Scan the QR code in the manual (usually for an app like "Endoscope Camera" or "Visible").

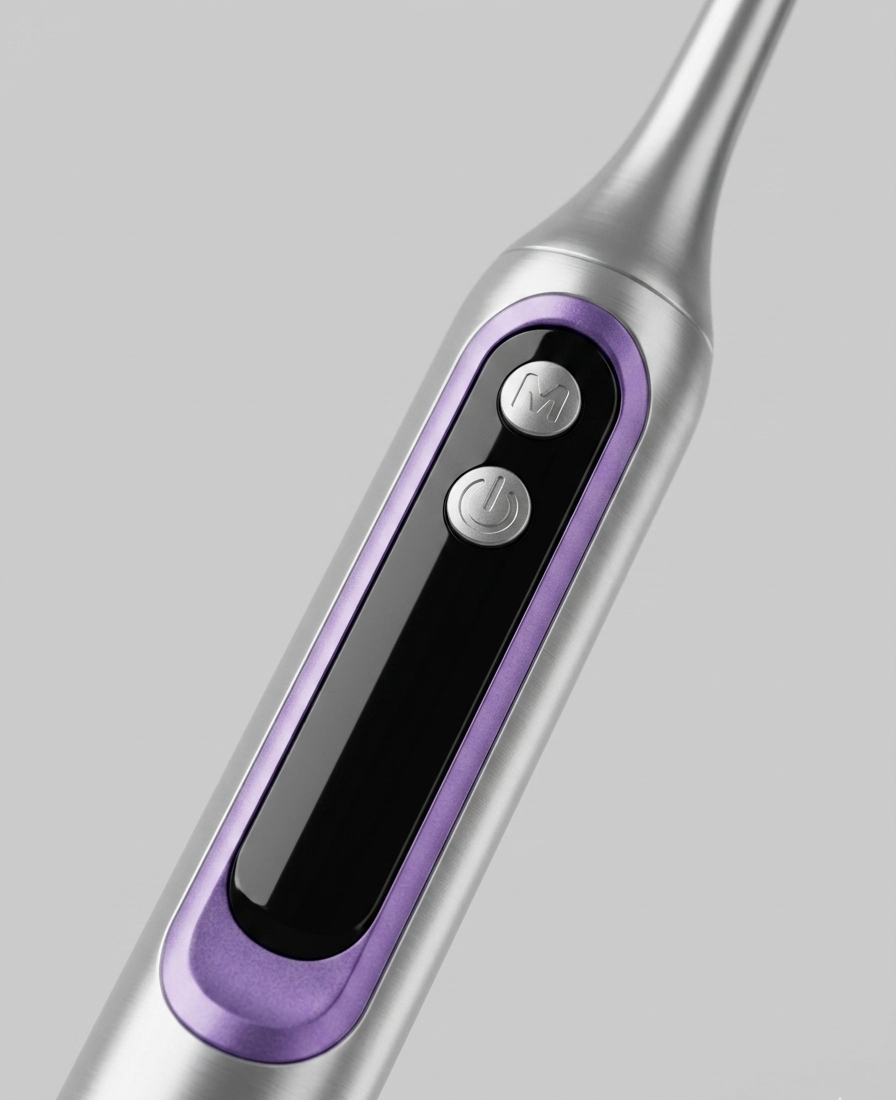

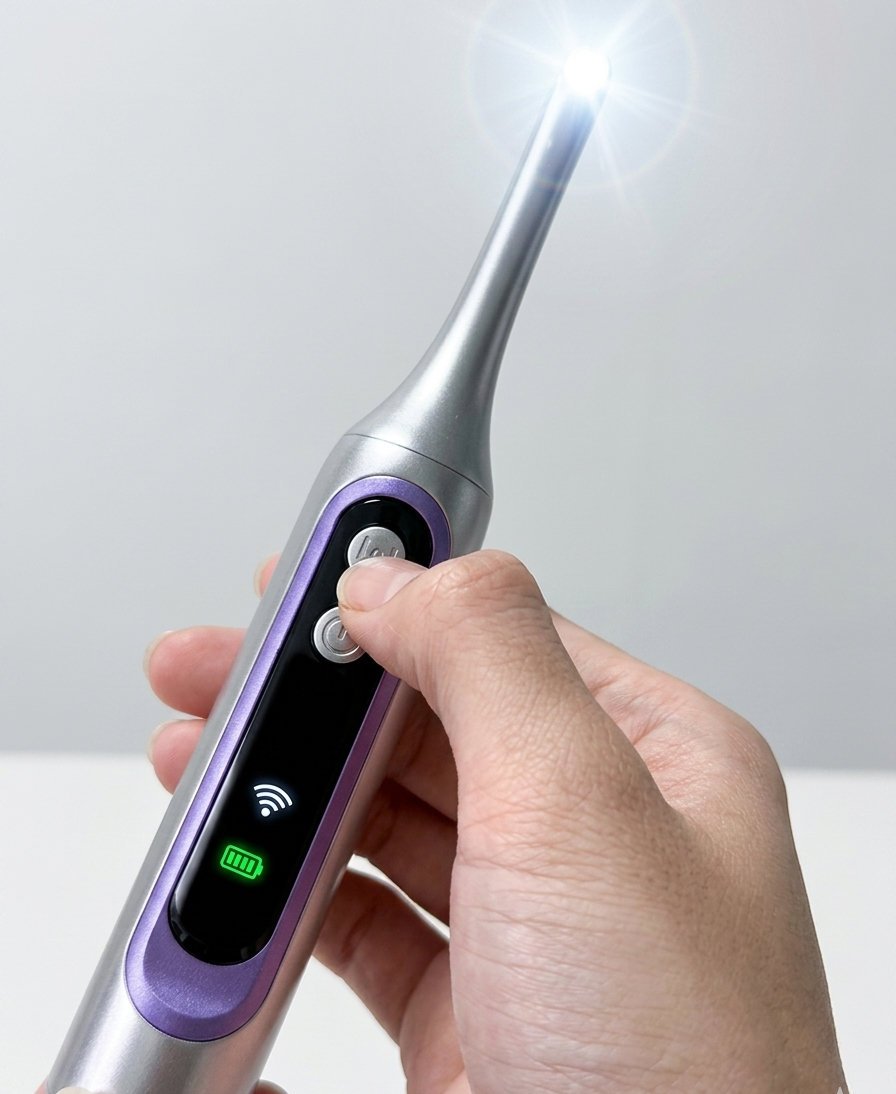

2. Power On: Press and hold the power button until the blue Wi-Fi indicator flashes.

3. Connect: Open your phone's Wi-Fi settings and connect to the network named "AY-201-xxxx" or similar.

4. View: Return to the app to see the live video feed.

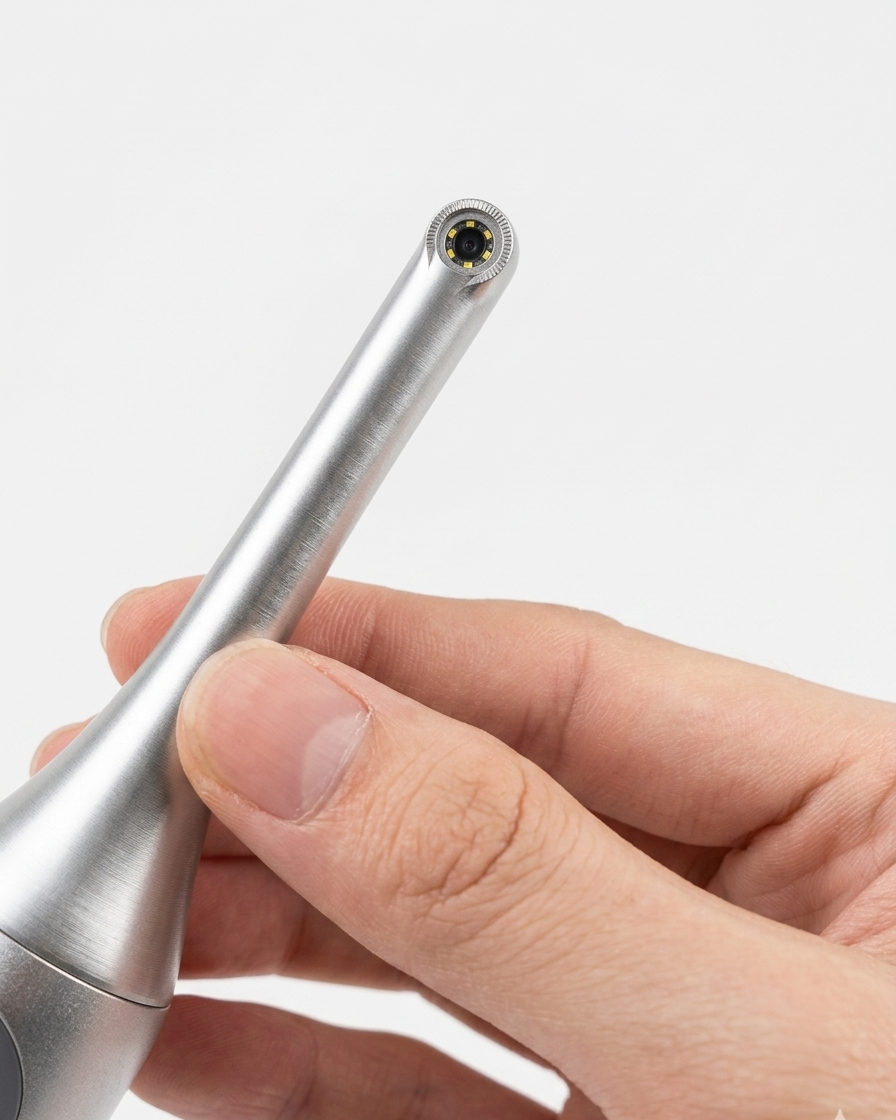

• The 1cm Rule: Because this is a macro camera, the image will be blurriest if you are too far away. Keep the tip exactly 1cm to 2cm away from the tooth for perfect focus.

• Anti-Fog: If the lens fogs up due to breath, briefly warm the tip in your hand or use an anti-fog wipe before inserting it into the mouth.

• Hygiene: Always wipe the lens with a 75% alcohol swab before and after use. Use the provided plastic sleeves if sharing the device with others.
