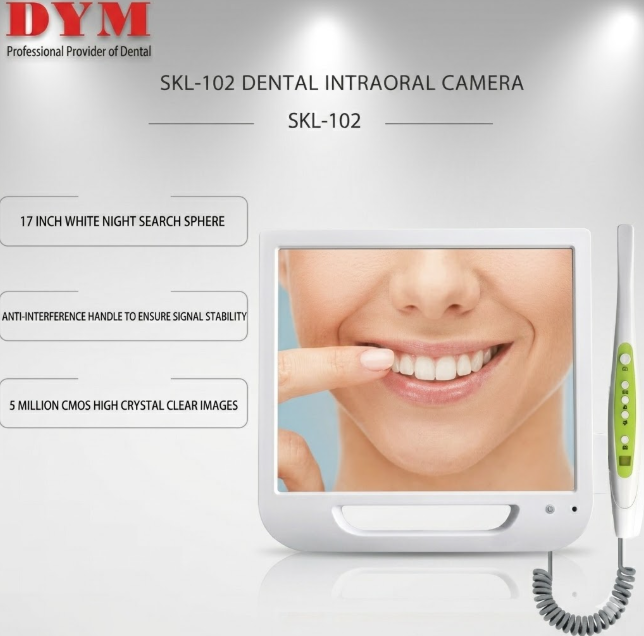

The SKL-102 is a high-definition multimedia endoscope system designed for dental clinics. It features a dedicated 17-inch medical-grade monitor and a high-sensitivity CMOS camera wand. It allows dentists to capture real-time, magnified images of the oral cavity and display them in various screen modes (1-picture or 4-picture) to help patients visualize their dental conditions.

• Standard Packaging: The unit comes in a reinforced box with custom-cut foam inserts.

  • Carton Size: Approximately 43.2cm x 10.2cm x 41cm.

  • Gross Weight: ~3.5kg to 5kg.

• What’s in the Box:

  • 1x 17-inch LCD Monitor

  • 1x Intraoral Camera Handpiece

  • 1x Coiled Camera Cable

  • 1x Handpiece Bracket (Hanger)

  • 1x DC 12V Power Adapter & Cable

  • 1x Remote Control

  • 1x USB Flash Drive (usually 16GB)

  • 50x Primary Disposable Sheaths (Sleeves)

• Installation: Mount the bracket to your dental chair arm or wall. Connect the camera wand to the monitor using the coiled cable. Plug in the DC 12V power adapter.

• Hygiene: Always slide a new disposable sheath over the camera head before every patient.

• Capture: Use the buttons on the wand or the monitor to freeze an image.

  • Press the Capture button once to freeze.

  • Press the Save button to store it on the USB drive.

• Viewing: Use the 1/4 button to view four images at once for "Before & After" comparisons.

• Storage: After the session, the USB drive can be plugged into a PC to transfer images into the patient's digital file.

• Intelligent Picture Mode: Switch between a single full-screen image and a quad-screen (4-frame) view for comparison.

• Storage Capacity: A 16GB USB drive can store approximately 30,000 images in JPG format.

• Multimedia Support: Can play video (MP4/AVI/MPG), music, and display text files via USB.

• Safety: The monitor typically features a tempered glass front for easy sterilization.

• Remote Control: Includes a dedicated remote for navigating menus and switching views without touching the monitor.
